Auto lamp aging cabinet, real-time monitoring of aging current, voltage and power Auto Parts Test Equipment
Product features:

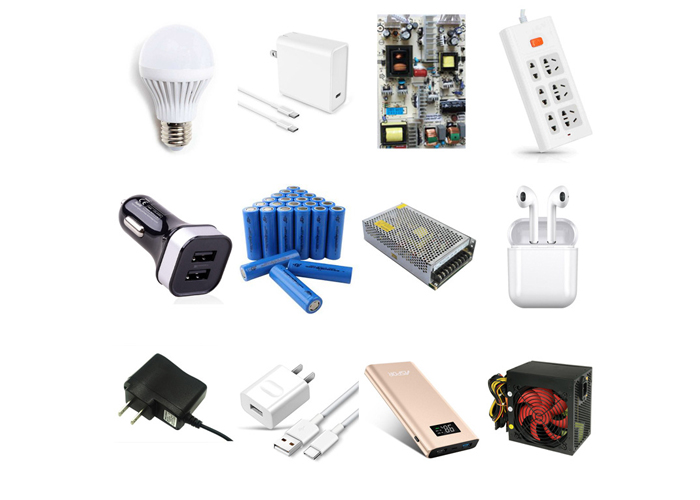

- The product is suitable for high power fast charger adapter ageing test, and also can design customized other aging test equipment;
- The aging of the specifications of the tank L2000 *w690 * H1888mm, burning rack points of products and load;
- Burning rack will be divided into 6 levels, unilateral ageing, each layer can put 32 PCS products,192 PCS products totally (the quantity of aging test can also be customized according to customer's request );
- The cooling mode of aging cabinet load area adopts indoor ambient temperature air cooling, room temperature;
- The product area can be configured with a group of hot air circulation system to accelerate the aging test of products (hot air circulation is shown in the picture), (40-80 degrees can be set);
- Monitoring voltage, current, power, etc. are set by computer to reduce operation time and cost;
- Beautiful structure, small volume, easy to move and demolition.Auto Parts Test Equipment
Software features:
1. Constant discharge current (electronic load discharge);
2. Discharge data collection and data preservation; Discharge data curve display;Auto Parts Test Equipment
3. Single point and multi-point can be set to control voltage discharge;
4. Monitor voltage, current and power and record and save data, that is, real-time monitoring of product aging status, defective products alarm;
5. Aging load current and voltage are set by computer;Auto Parts Test Equipment
6. Load ambient temperature 50°±5°, with over voltage, over current, over temperature protection;
7. EGO overtemperature power failure, smoke detection power failure alarm two-stage fire prevention system;
8. Scan code system with MES.Auto Parts Test Equipment
Parameters:
| Model | AM0050 Auto Parts Test Equipment |
| Exterior dimension | Design dimensions according to customer's specific requirements. |
| Cooling method | Air cooled |
| Aging quantity | 192 products (according to customer requirements) |
| Noise | < 65 db |
| Quantity of product zone | More than 1 product area |
| Cabinet structure | Cool-rolled sheet |
| Sliding door structure | 4 folding doors |
| Product power | 1W-100W, 120V output,8A |
| Control method | PC and PLC intelligent control system |
| Quick charge agreement | QC2.0/QC3.0/QC4.0/MTK1.0/MTK2.0/PD2.0/PD3.0/PPS |
| Aging time | 0-999.99 can be set |
| Operation interface | Easy to understand, a variety of colors to distinguish aging state. |
| Aging method | Fast charge electron load discharge. |
| Temperature range | At room temperature to -50°±5° |
| Temperature accuracy | ±5° |
| The monitoring system | Programmable communication is adopted to monitor the output voltage, current, power and aging temperature curve of the product. |
